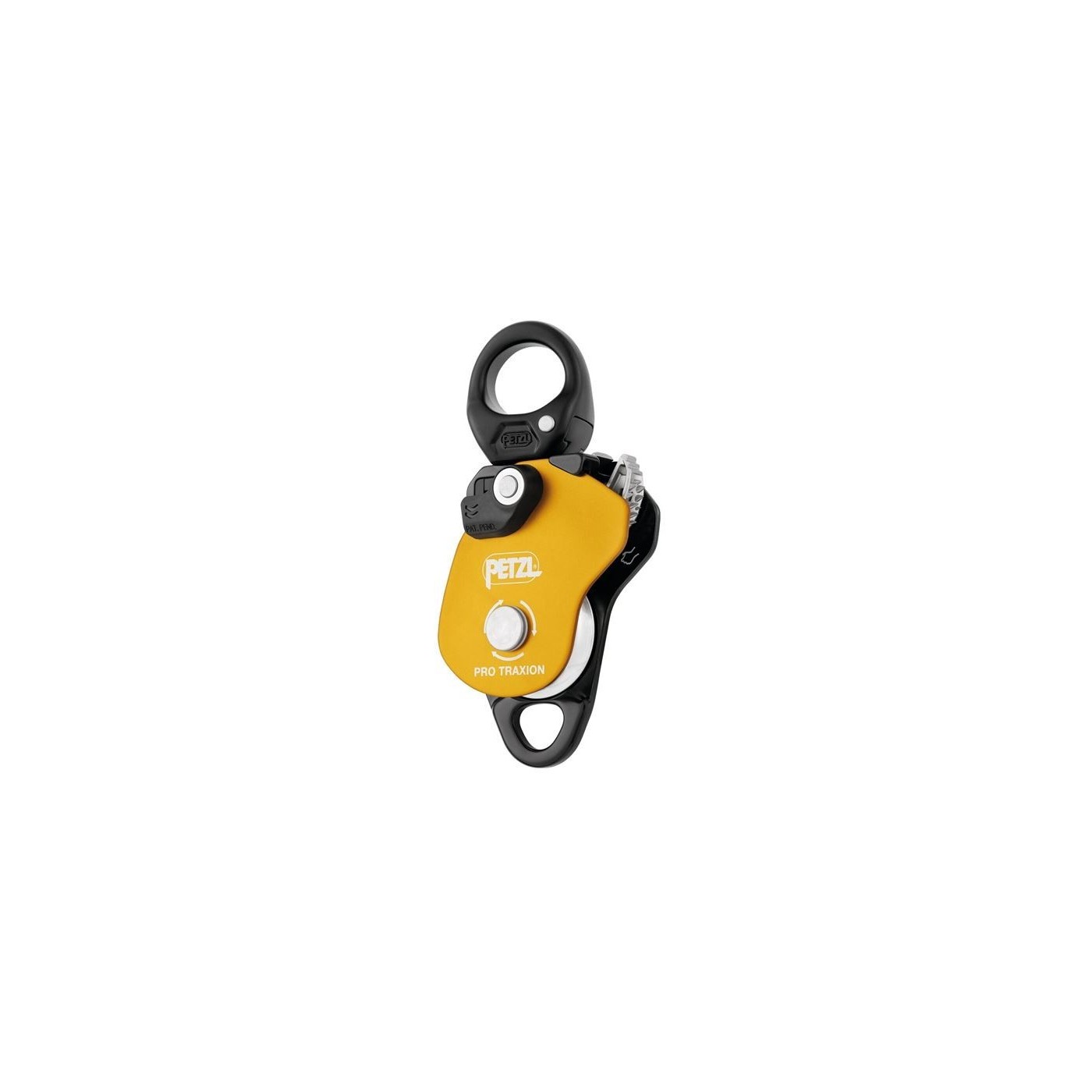

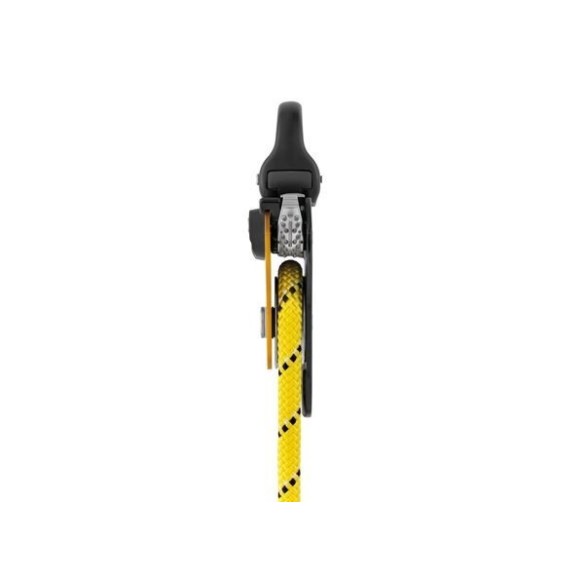

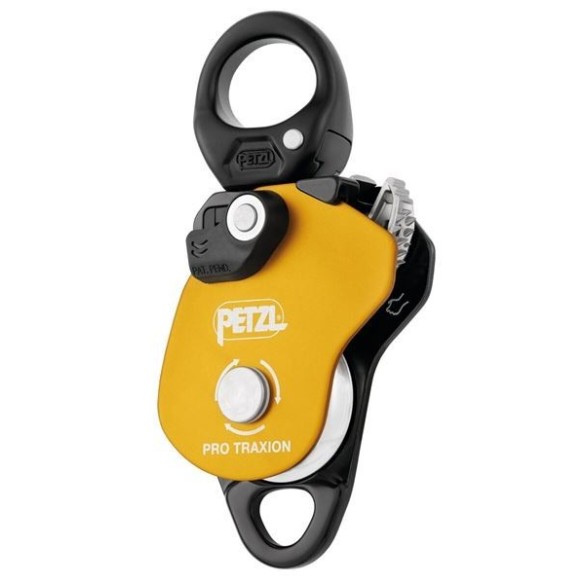

petzl pro traxion pulley

Detailed description

Easy to handle and unmissable:

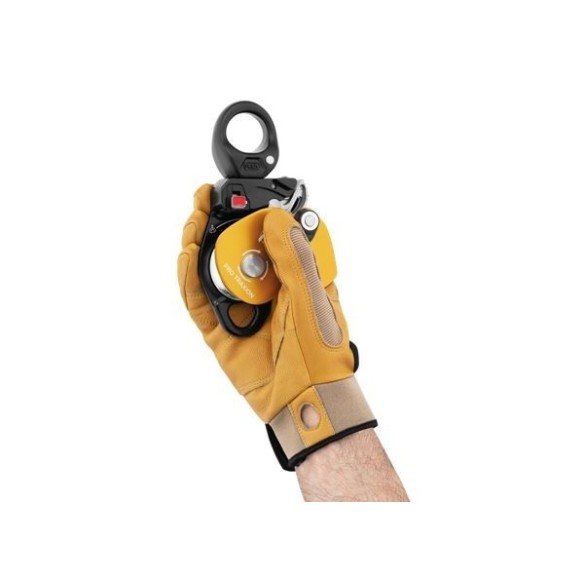

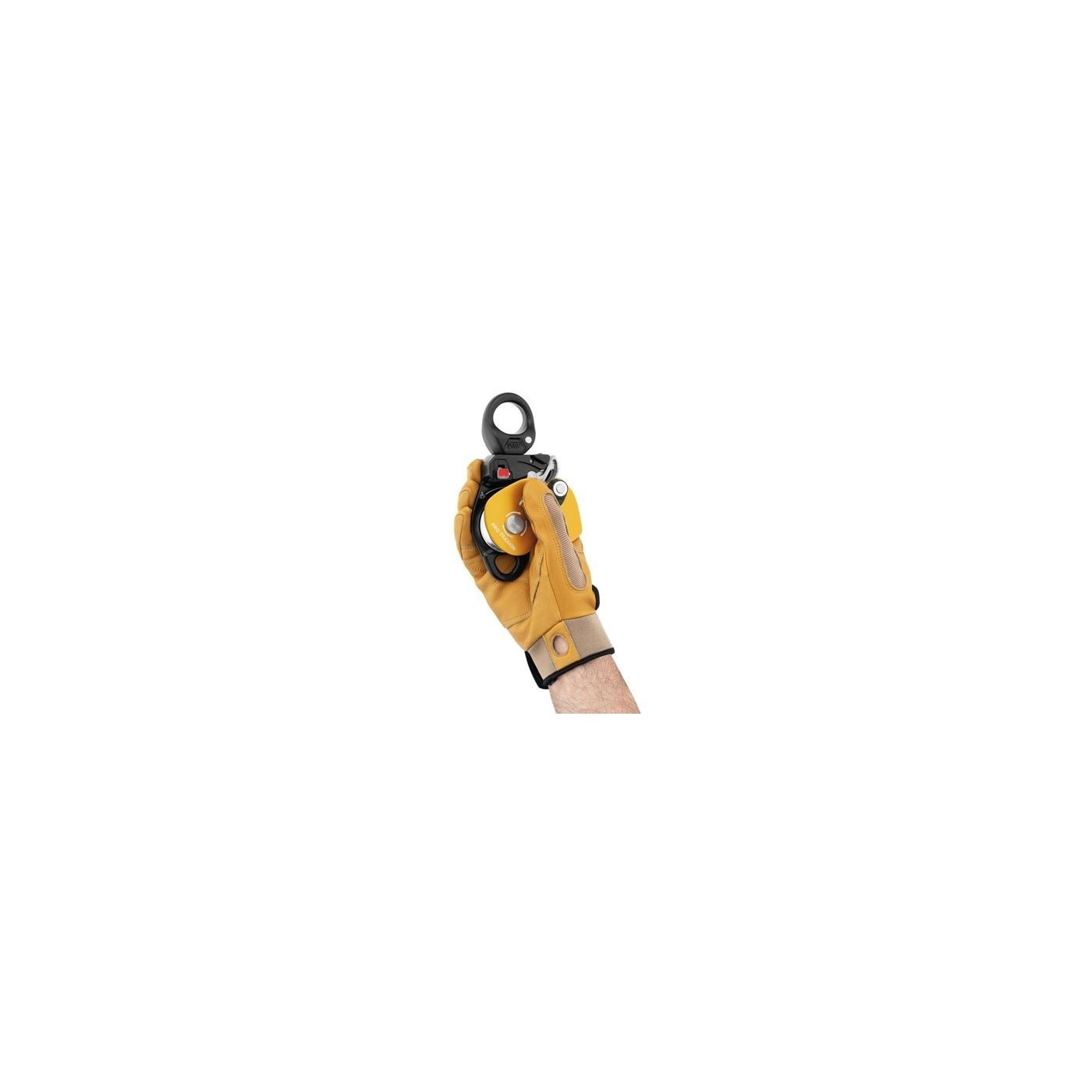

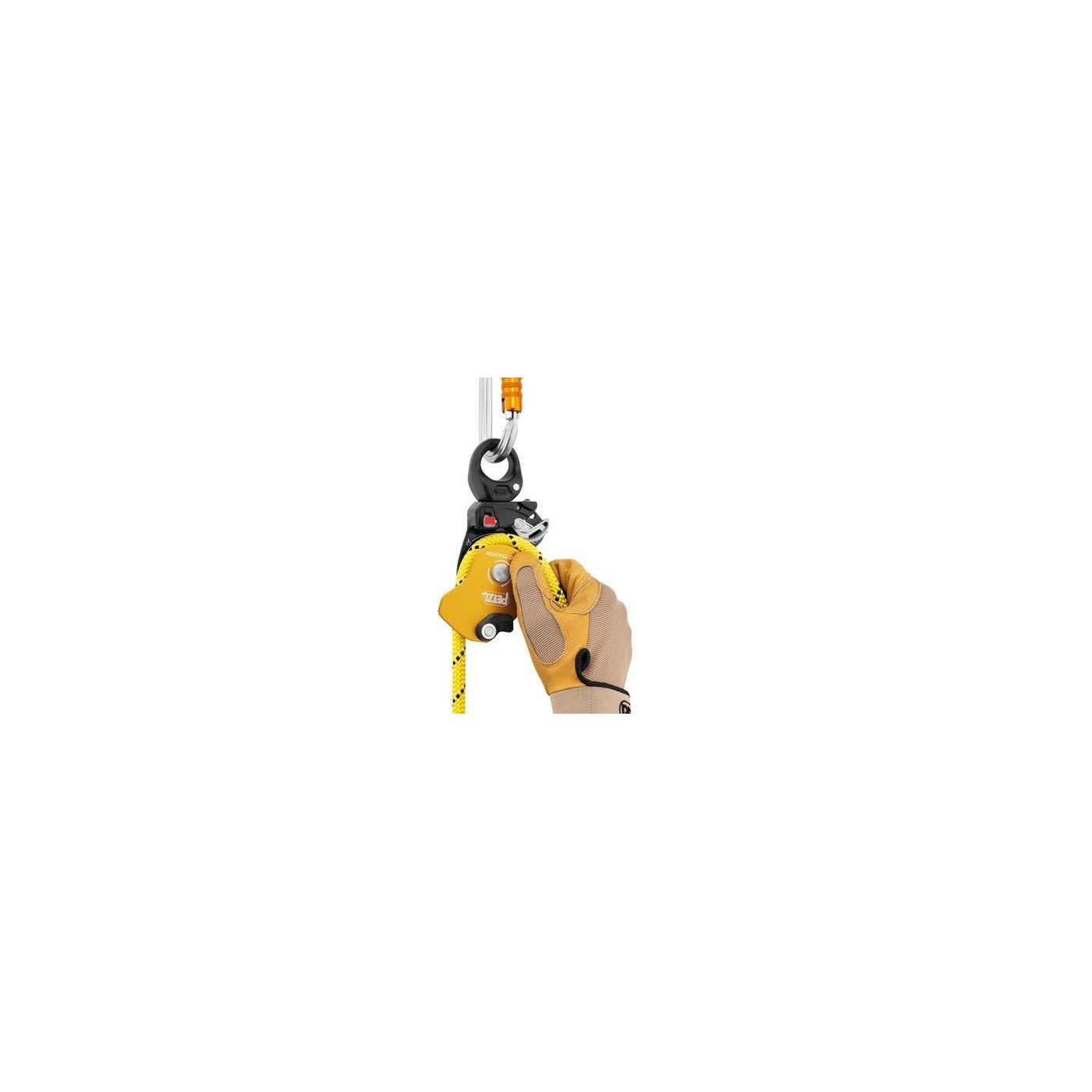

- Triple action opening of the mobile side plate, easy and fast, even with gloves.

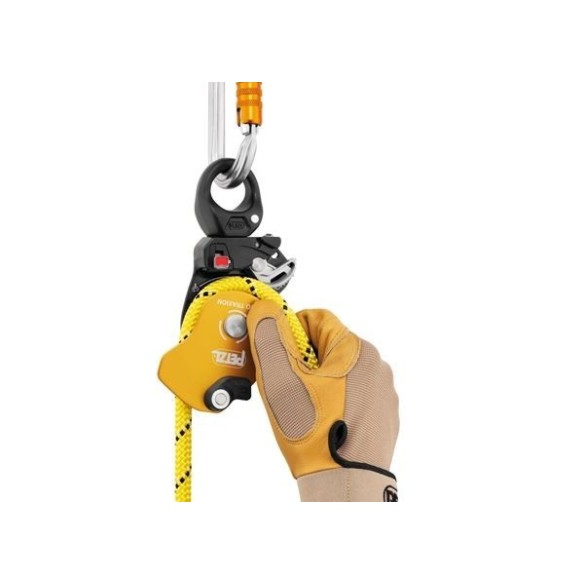

- Possibility of installing the rope when the pulley is fixed to the anchor.

- Visible red indicator when the mobile side plate is not locked.

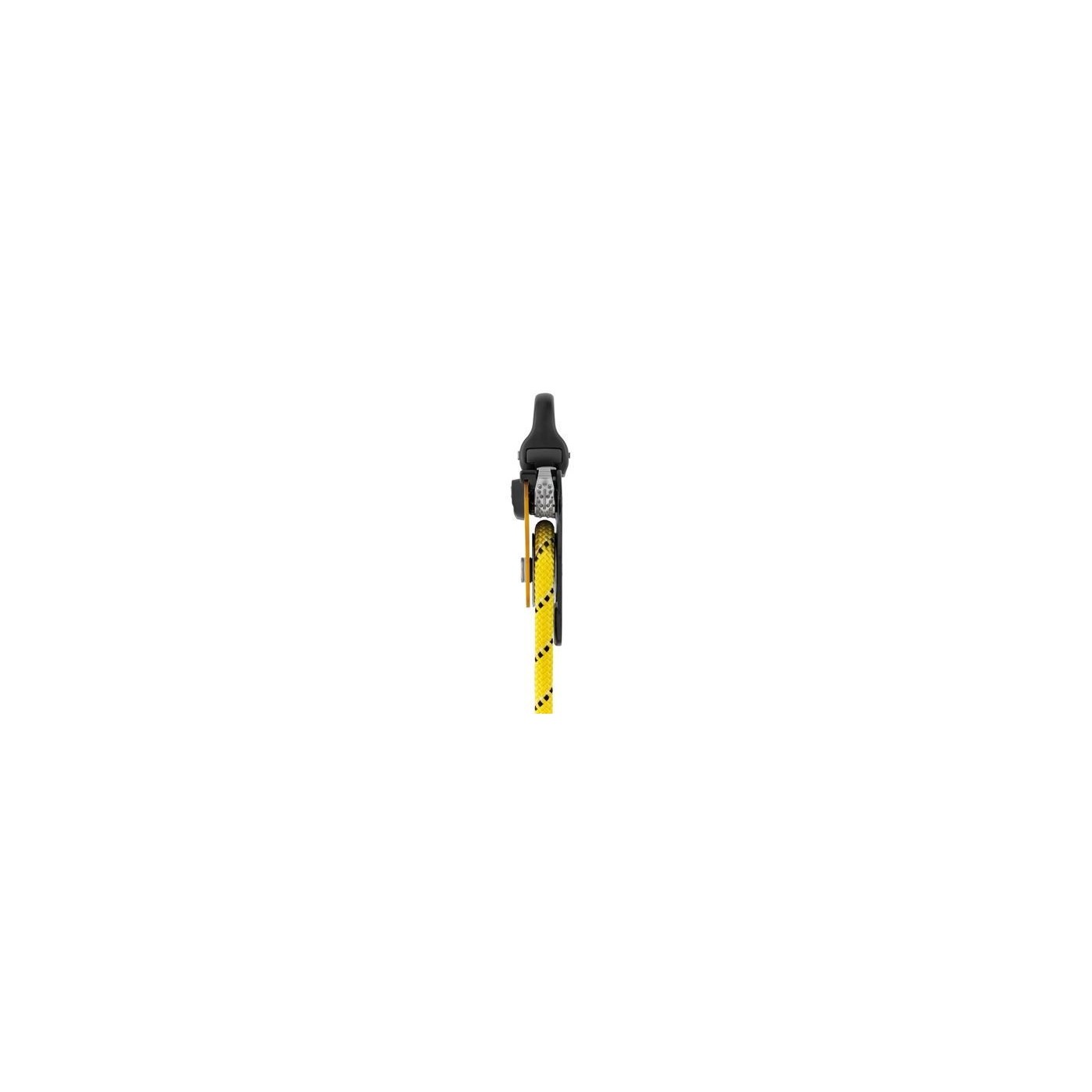

- Specific design of the side plates that protect the passage of the rope.

Particularly adapted for lifting heavy loads:

- Large diameter aluminum sheave with sealed ball bearing to ensure excellent performance.

- Swivel link that allows the pulley to be oriented under load.

Versatility of use:

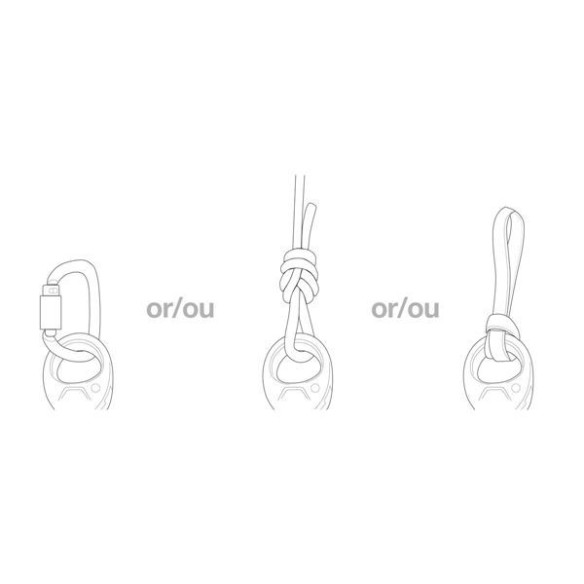

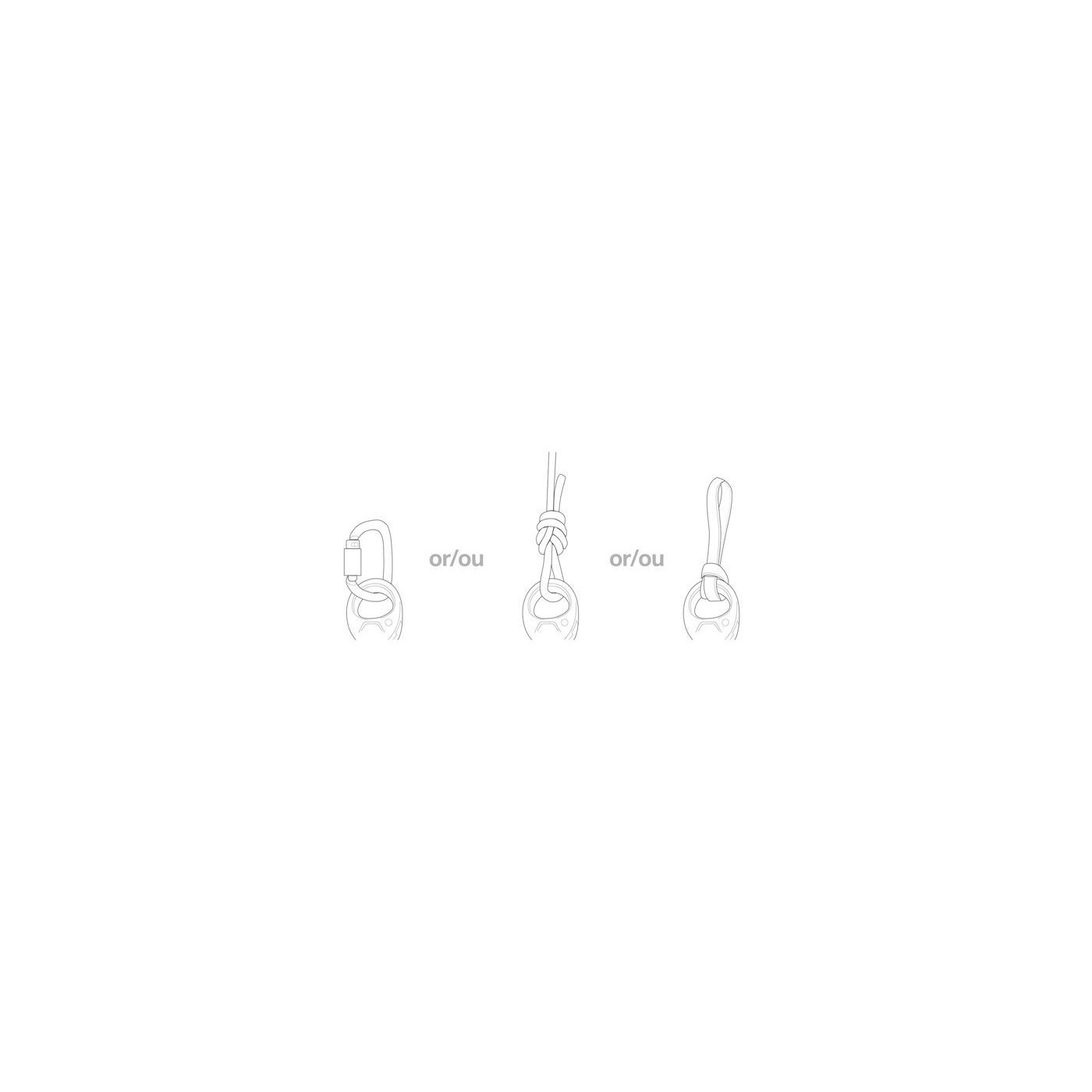

- Swivel and auxiliary attachment point that allows the use of carabiners, ropes or tapes to facilitate manoeuvres.

- Toothed cam with evacuation slot to optimize operation in any condition: icy rope, muddy...

- Use as a simple pulley when blocking the cam in the raised position.

- Auxiliary hooking point that allows hoists to be made.

- Hole in the cam that allows the installation of a remote control cord.

Specifications

Weight: 295g

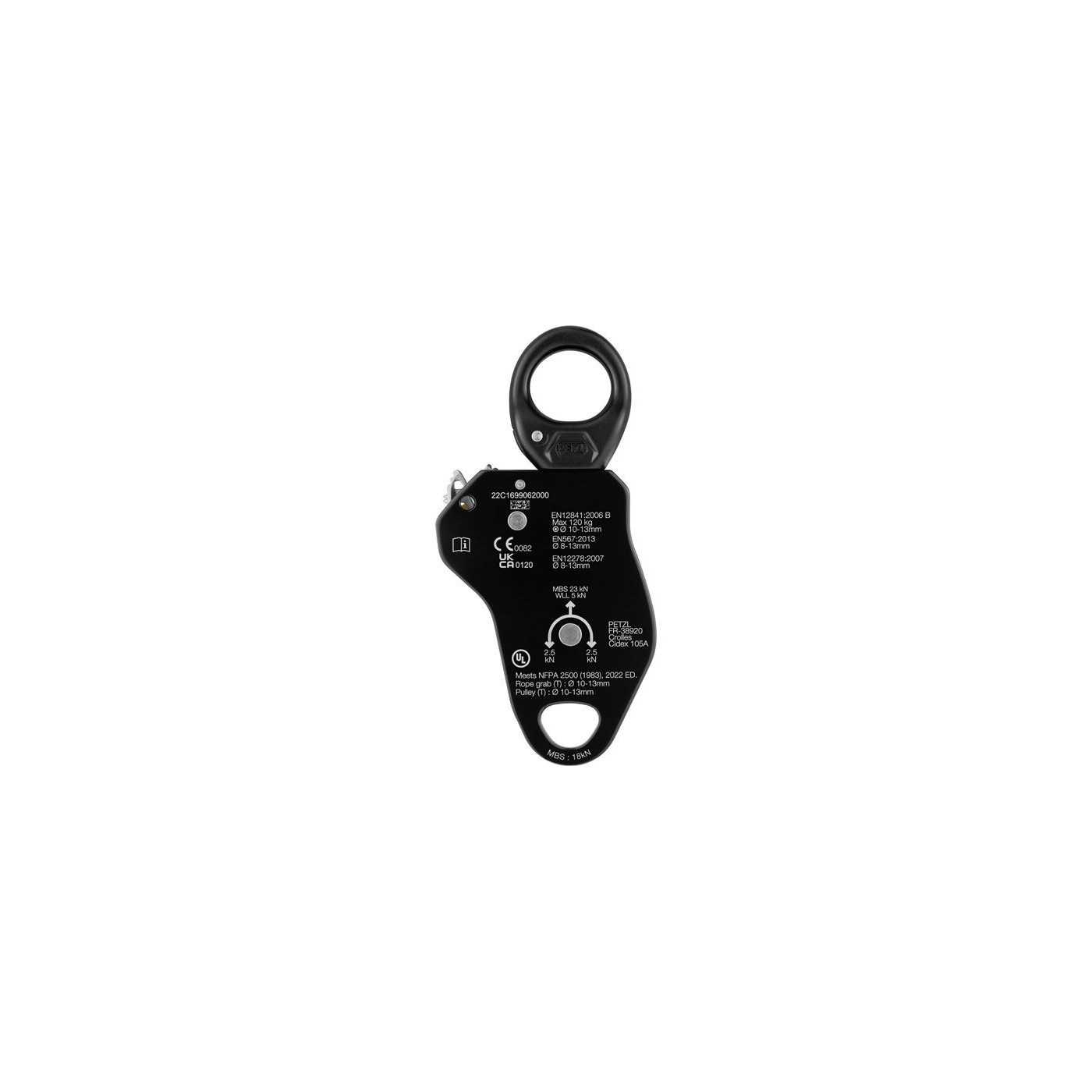

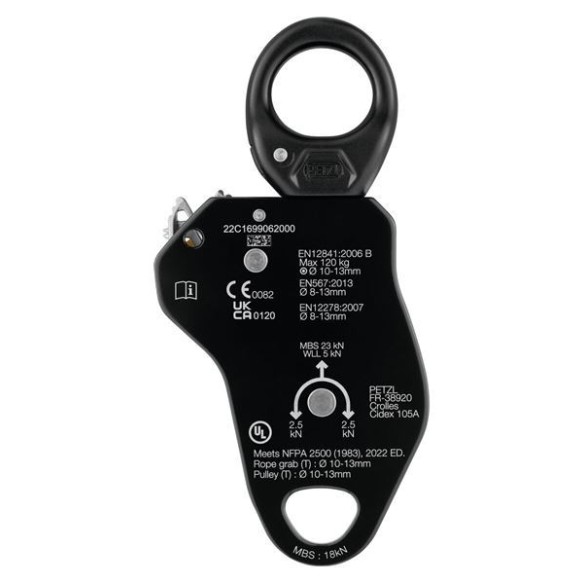

Certifications: CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab

Materials: aluminum, stainless steel and polyamide

Min. rope diameter: 8 mm

Max rope diameter: 13 mm

Sheave type: sealed ball bearing

Sheave diameter: 38 mm

Breaking load - ascender: 4 kN

Breaking load - pulley: 11.5 kN x 2 = 23 kN

Yield: 95%

s: CE EN 567, NFPA 1983 Technical Use, EAC

Materials: aluminum, stainless steel and polyamide

Min. rope diameter: 8 mm

Max rope diameter: 13 mm

Sheave type: sealed ball bearing

Sheave diameter: 38 mm

Maximum working load: 2 x 2.5 = 5 kN

Breaking load - pulley: 11 kN x 2 = 22 kN

Maximum working load - ascender: 2.5 kN

Breaking load - ascender: 4 kN

Yield: 95%
