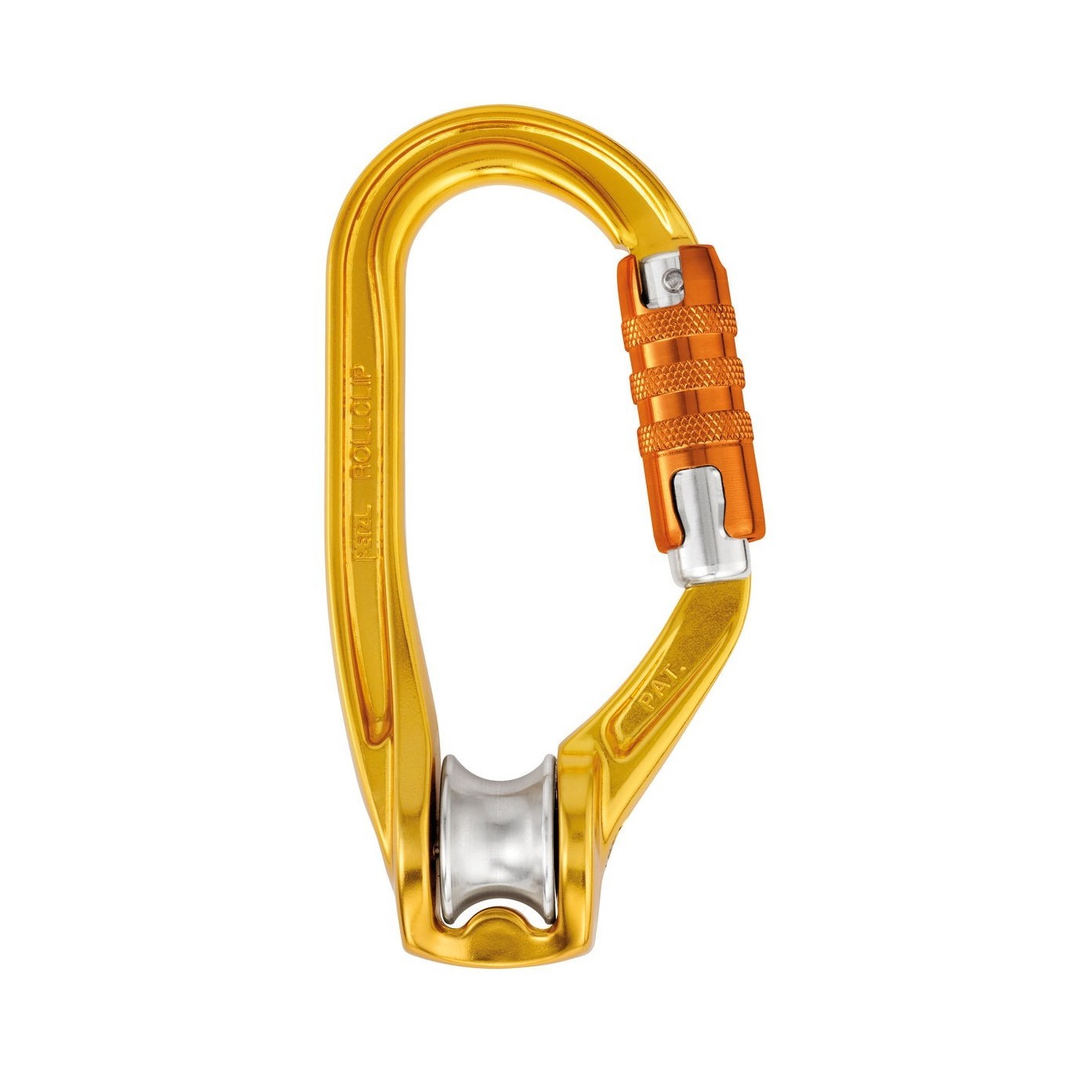

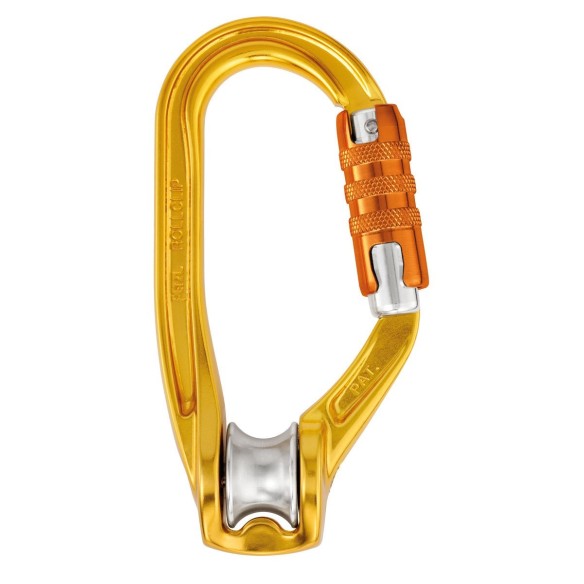

petzl rollclip a carabiner pulley

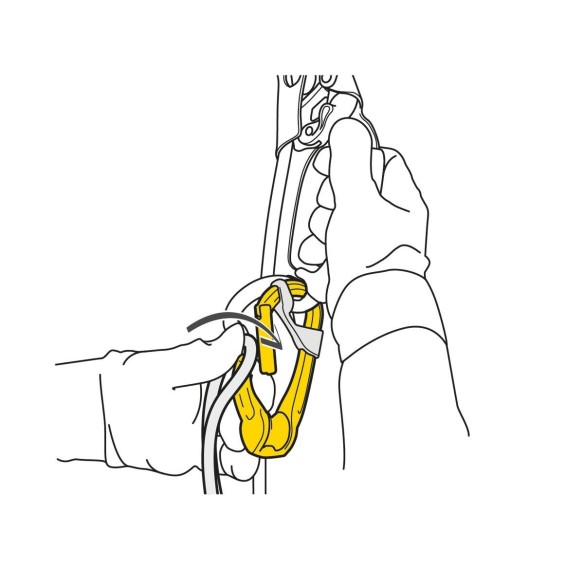

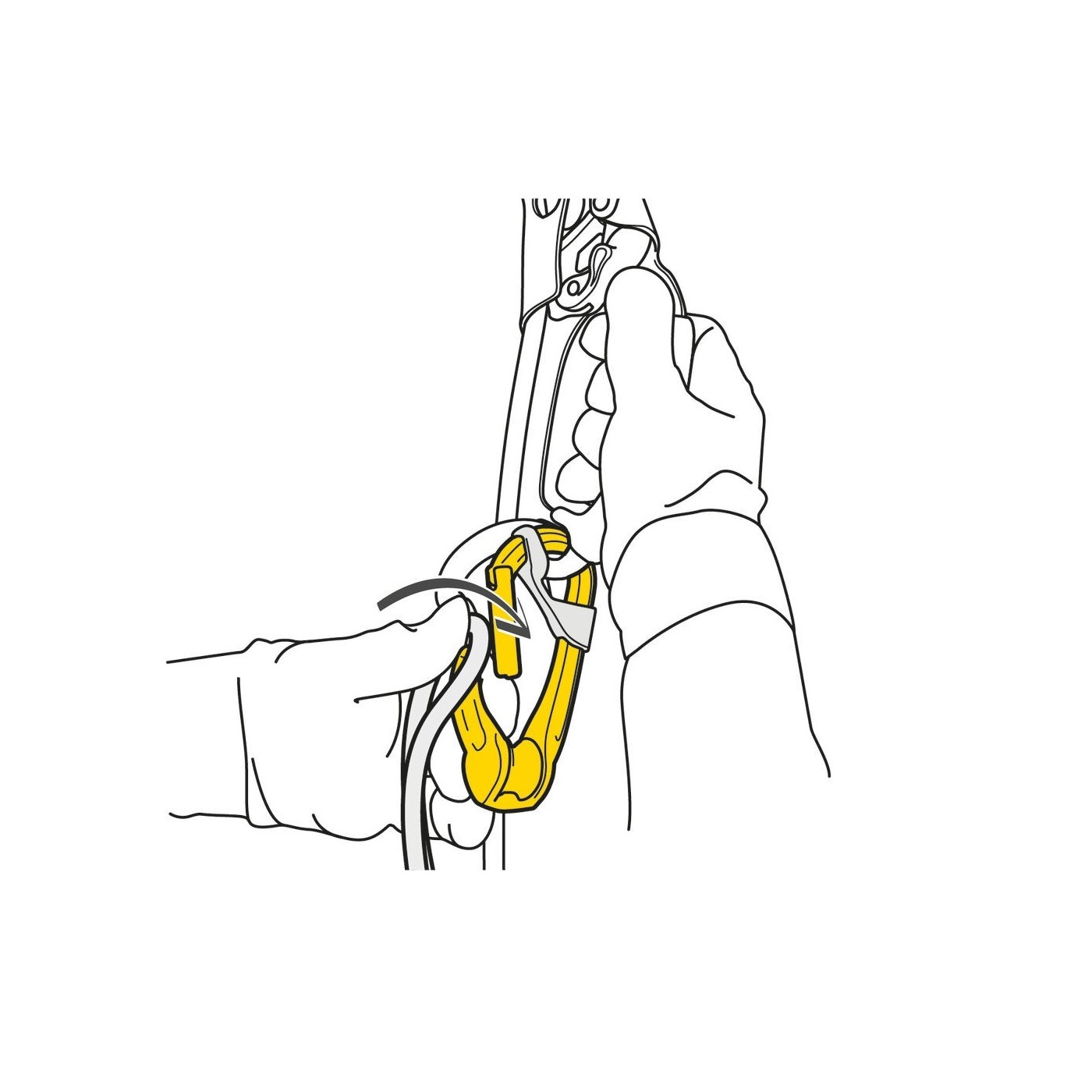

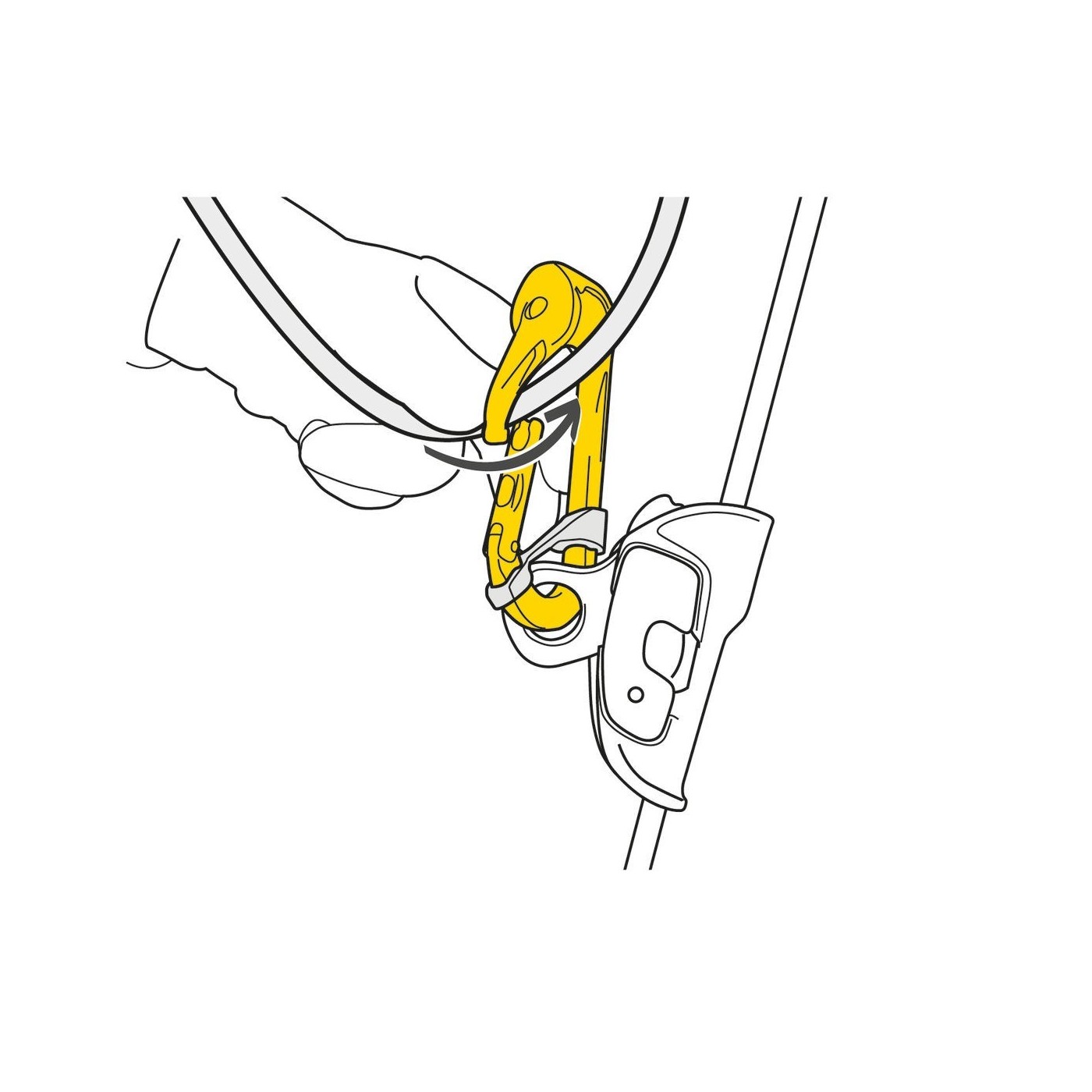

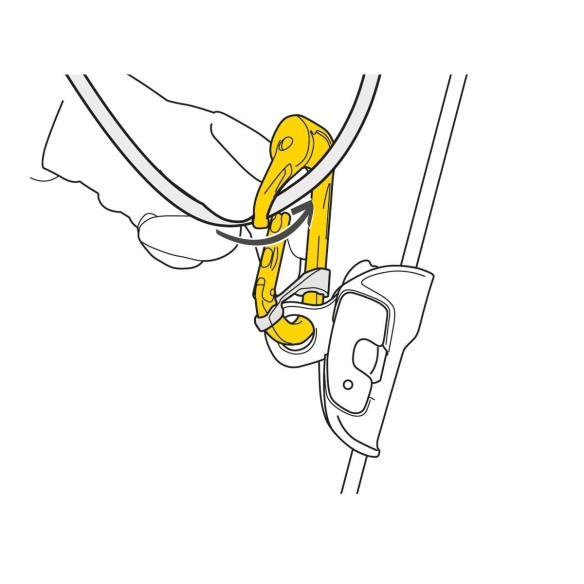

The ROLLCLIP A is a carabiner pulley designed to facilitate rope installation when the pulley is attached to the anchor. It has a trigger opening on the side of the pulley, making it easy to insert the rope into the pulley without having to remove it from the anchor. This feature speeds up manipulations and saves time in situations where a quick configuration change is required.

The ROLLCLIP A is available in two versions: one with TRIACT-LOCK automatic locking system and another without lock. The TRIACT-LOCK system ensures a secure and reliable connection by automatically locking the trigger in three directions. The non-locking version allows for quick and easy connection, but does not have the auto-lock feature.

The ROLLCLIP A carabiner pulley can be combined with the CAPTIV bar, which helps to favor the loading of the carabiner along the major axis and limits the risk of overturning. This provides greater stability and safety during use.

The ROLLCLIP A has a sheave with sealed ball bearing, which guarantees excellent performance and low friction during rope handling. In addition, its H-shaped profile ensures an optimal relationship between resistance and lightness. It also protects the carabiner markings from abrasion.

The ROLLCLIP A carabiner pulley is made of aluminum and complies with CE EN 362, EN 12275, EN 12278, UKCA and EAC certifications. It has a minimum rope diameter of 7 mm and a maximum of 13 mm. The diameter of the sheave is 18 mm. The maximum operating load is 4 kN (2 x 2 kN due to the pulley). The pulley efficiency is 85%. The resistance in the major axis is 20 kN, in the minor axis it is 8 kN and the resistance with the trigger open is 7 kN.

The ROLLCLIP A is available in two references: P74 TL for the version with TRIACT-LOCK locking system and P74 for the version without locking. The TRIACT-LOCK carabiner pulley weighs 115g, while the non-locking version weighs 105g.

The ROLLCLIP A comes with a 3-year warranty, ensuring its quality and durability.
